List $70,000 +

***Reduced***Item # UFE-1259   $29,995

Full Image

OMGA V235 NC V Cutting Machine System

Double Miter Saw Model V235 NC System

This machine / system is in  Very Good Working Condition.

Power:  50HZ  / 400volts



The V235 NC is a high speed precision mitre saw for the picture frame, joinery and furniture industries. It is fitted with an on board computer enabling it to operate in various cutting modes. The machine is able to cut from random lengths of material and can also optimize the cutting sequence in its list mode.  The computer is fitted with an 8 inch visual display unit which allows the data that the operator requires to be constantly displayed. Programs can be written and edited on the machine or can be downloaded from an office PC via a 3.5 floppy disc. It is possible to interrupt the cutting process at any time and have a different program carried out whilst all the data relating to the first program remains stored. Error messages are displayed on screen reducing downtime. The machine is fitted with a choice of either a 3000mm capacity vertical hopper feed system or a 3000mm horizontal feed system, an outfeed conveyor belt with a pneumatic sequence kicker is also fitted as standard in order not to damage the cut components and to separate the tail end waste pieces.  Specification Twin blade cutting station with 3 hp motor 2 x 350mm diameter TCT sawblades 85mm cutting width capacity Pneumatic blade stroke with speed adjustment  Vertical or Horizontal feed magazine 3000mm capacity Outfeed conveyor with photocell and kicker

This item can be picked up in New Zealand, or shipped for an additional fee by a Crate & Freight company. Shipping is not the $6.50 default found in the shopping cart.

John-NZ-3-1-11

JP-Sold-8-22-12   Return Home

List $ 110,000 +

***Reduced***Item # UFE-1260   $29,995

Full Image

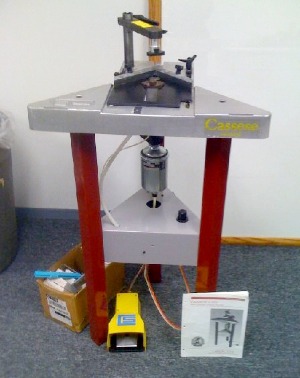

Cassese FB5021 robotic tab machine

This machine / system is in  Very Good Working Condition.

Power:  50HZ  / 400volts

It is always a good idea to contact the manufacturer to determine the differences between the newer generation machine and what is being offered here.



From the Manufacturer's Site: Newest Generation: Cassese FB7000 Automatic Fastening machine has been especially designed for the customs & contract framers. AUTOMATIC BACK FIXING MACHINE The FB7000 is designed to automatically secure backings and standbacks into frames with 15mm & 25mm and U-Shape staples. Velocity and flexibility for small and big series : The machines takes by itself the internal and external dimensions of the frame within a few seconds, without human intervention. Change over is from 30 seconds up to 45 seconds (for the biggest sizes). This velocity and flexibility makes it ideal and extremely productive even for small batches from 20 frames. Website: http://www.cassese.com/eng/cassese_back_fixing_machine.html#stop01

This item can be picked up in New Zealand, or shipped for an additional fee by a Crate & Freight company. Shipping is not the $6.50 default found in the shopping cart.

John-NZ-3-1-11

JP-Sold-8-22-12   Return Home

(VN42 List price new $4,687)

Item # UFE-1262  $ 1,700

Full Image

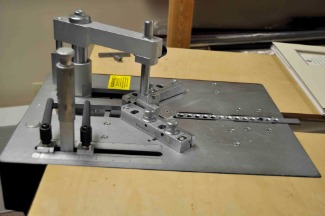

ITW / AMP  Mitre- Mite VN42 Underpinner

ITW Pneumatic Under-pinner / V-Nailer / frame assembly machine

Machine is in Very Good Condition. This was used in a small frame which is closing.

Manufactured: bought new about 5 years old

Following info / specifications are from manufacturer's or Distributors website:

The Mitre-Mite VN 42 has been designed for ease of operation and is particularly well suited for assembling larger frames. This machine comes with a height adjustable base and has a convenient tilt / roll feature which allows for easy movement around the shop. it can be operated from the front or back and has a dual stage foot pedal which allows the Framer to see if the corner is properly aligned before nailing. After the Framer sets the stops, the hand lever is then used to position the nail head for driving or stacking V-Nails anywhere along the frame joint.

Specifications:

• MACHINE SIZE:
  • Width 14"
  • Length 19"
  • Height 33" to 43"
  • Weight 150 lbs.
• POWER SOURCE: Pneumatic
• FRAMING CAPABILITY:
  • Frame Width 3/8" to 5 1/2"
  • Frame Height 1/4" to 41/2"
  • Tilt/Angle fence for custom fit
  • 4 , 6, or 8 sided frames.
• V-NAIL SIZES: 3, 5, 7, 10, 12, 15 mm
• OPTIONAL ACCESSORIES:
  • Wood support table
  • Metal extension wings

This item can be picked up in New Hampshire, or shipped for an additional fee by a freight company. Shipping is not the $6.50 default on the order page.

Kathy-NH-3-4-11

Sold 3-18-11 Kathy    Return Home

Item # UFE-1263  $ 795

Full Image

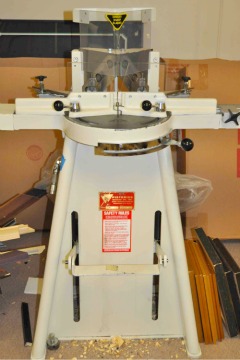

Pistorius Model KChopper

Foot Operated

 Chopper is in Very Good Condition. This was used in a small frame which is closing.

Model: KF  Serial # 294291

This item can be picked up in New Hampshire, or shipped for an additional fee by a freight company. Shipping is not the $6.50 default on the order page.

Kathy-NH-3-4-11

Sold 3-18-11 Kathy       Return Home

List Price $275+

Item # UFE-1264   $175

Full Image

Sold 3-18-11 Kathy    Return Home
