Section 2:  Frame Moulding Cutting & Joining Equipment

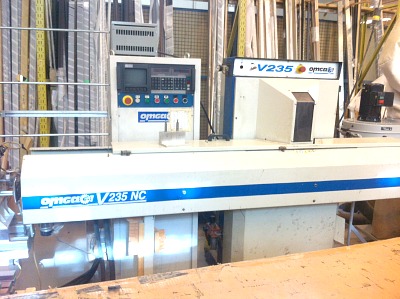

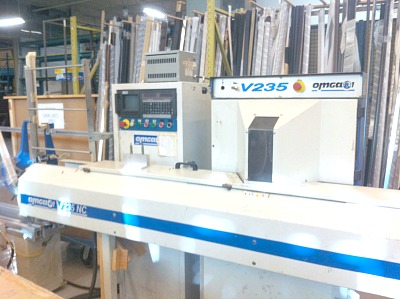

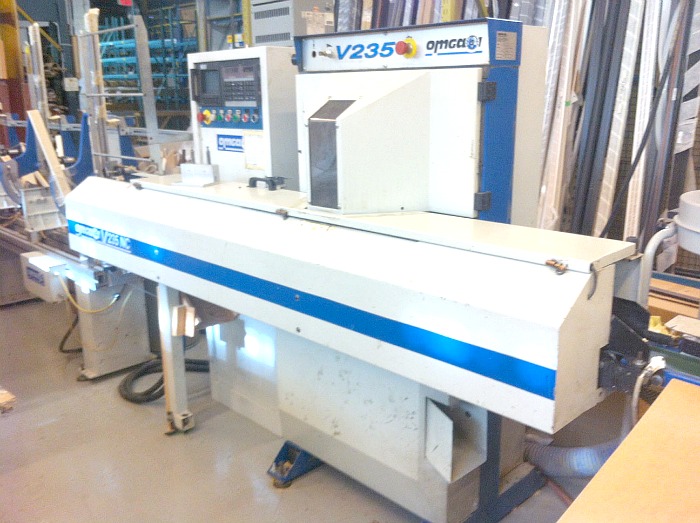

UFE-2131   OMGA V235NC Double Miter Saw

This machine is in Good Condition.

From the seller: "The maximum length the machine can cut is 56”. "

***Reduced***Price:   $18,990

Manufacturer's Information:

V 235 NC

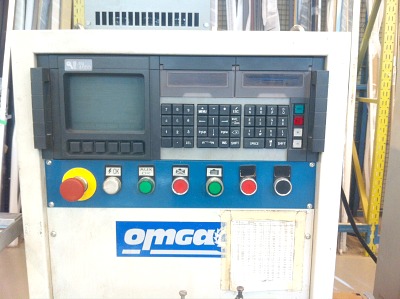

The V 235 NC has been designed on the same concepts of the V 2013 NC by streamlining the project and making it even more cost effective. The system is well suited for elevated production of picture and photo frames as well as any other component which is assembled by way of mitering the ends. Sophisticated, but simple and practical, the system is fitted with a guidance computer which makes the machine more productive and flexible, for an improved quality of the finished product. The machine counts with a hopper feeder (available in both Horizontal and Vertical versions) which allows it to function completely unattended. The following are some of the key features of the V 2013 NC Fully Automated Mitering System: Optimized Cutting By inputting the data relating to the length of the moulding along with the cutting list, the machine is able to select the best sequence automatically, maximizing the material's yield. Higher Production The high speed feed carriage allows large scale production in any circumstance. The zero setup time for changes in the cutting list, is another important factor in the high performance of this unique system. Depending on several variables the output of the system ranges from 1000 to 1500 pieces per hour. Data Storage The computer has down loading capability through the 3 1/2" floppy disk or direct cable connection via RS 232 port. It is possible to interrupt the cutting process at any time and have a different program carried out, while all the data relating to the first program including the number of pieces still to be executed remain stored. Easy User Interface The onboard computer is equipped with an 8" monitor which allows all the messages that the operator requires, to be fully and constantly displayed in the desired language. A step by step full graphic display makes it easy for the operator to select the required operation. The on the screen diagnosis , reduces needless down time due to electric or pneumatic failure. Flexibility The two 14" saw blades make it possible to attain a considerable cutting capacity which can also be extended with optional 370 mm diameter blades.

Technical Information:

Max Cutting Width:    3 9/16"

Max Cutting Height:  2 3/4"

Motor Power HP:    4

Saw Blade Bore:   30 mm

Saw Blades Diameter:  350 mm

Auto Mitre Position:  N/A

Overall Dimensions:  98" x 33" x 63"

Crated Dimensions:   108" x 69" x 75"

Crated Dimensions Hopper:  98" x 29" x 43"

Dust Chute:   2 x 3"

Max Feed Stroke:  47"

This item can be picked up in Canada or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

Elmer-Canada-2-11-14 $19,995 / 3-5-14 $18,995 / 9-10-14 $18,990/1159 s
