Section 14: Industrial Printing Equipment / Wide Format Equipment

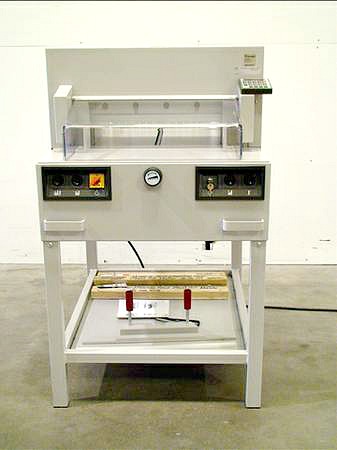

IPE-90  Triumph 4850 - 95EP Paper Cutter

This unit is in Good Condition.

Includes 2 extra knives

Price  $3,500

This item can be picked up in Iowa or shipped for an additional fee by freight company. Shipping is not the $6.50 default on the order page.

Judy-IA-5-12-14/1222

Manufacturer's Information:

The Triumph Ideal Paper Cutter was manufactured in Germany.
The Triumph IDEAL 4850-95EP with its automatic clamp, includes a programmable power backguage. It has an all-metal construction with an electro-mechanical blade drive. The 4850-95EP includes an optical cutting line, digital display and 10-button key pad for preset measurements. There are 9 programs including 9 steps in each program and a memory key. Other features include a safety drive and a spindle guided backgauge for precise trimming positioning.

Features:

GUILLOTINE WITH AUTOMATIC CLAMP AND AND PROGRAMMABLE »EP« POWER BACKGAUGE
• 475 mm (18.7") cutting length
• Electro-mechanical blade and clamp drive
• Power backgauge with "EP" backgauge control module
• Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast)
• Optical cutting line indicator with bright and durable LEDs
• Adjustable backgauge with narrow separations and plastic gliders
• Two side lays each on front and rear tables
• High-quality blade made from "Solingen steel"
• Solid steel blade carrier and adjustable blade guides
• Automatic clamping system, guided on both sides for evenly distributed clamping pressure (clamp can be lowered or raised independently from blade)
• Solid all-metal construction
• Complete with stand and storage shelf

SCS (Safety Cutting System):
Hinged, electronically controlled safety guard on the front table; transparent safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers.

PROGRAMMABLE »EP« CONTROL MODULE FOR THE POWER BACKGAUGE:
Digital display for measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch)
• 10-button key pad for presetting of measurement
• Memory key for repeat cuts
• 99 programs with 99 steps in each program (up to 9 repeat cuts can be integrated into a program as one single program step)
• Setting of program steps via "Start" button
• "SET" function key for reference measurement
• Programmable EJECT function -- for pushing out the paper
• Two programmable keys for quick setting of frequently needed measurements
• Self-diagnosis system with error indication on display

Cutting length (mm) 475 (18.7")
Cutting height (mm) 80 (3.15")
Table depth (mm) 450 (17.72")
Narrow cut (mm) 35 (1.38")

"EP" BACKGAUGE CONTROL
Fully programmable backgauge control module with digital
measurement readout, 10 push button key pad, and memory key
for repeat cuts.

PUSH BUTTON CONTROL
Push buttons allow, that the automatic clamp can be moved
up and down independent of blade movement.

LED OPTICAL CUTTING LINE
The optical cutting line with bright, durable LEDs shows
where the cut will be performed and helps to align cutting marks
precisely for accurate cuts.

ELECTRONIC HAND WHEEL
Electronic hand wheel for manual backgauge positioning
with infinitely variable speed control (from very slow to very
fast).

SAFETY GUARD
The electronically secured front safety guard swings out
of the way easily and allows safe and convenient cutting.

Specifications:

Electrical:
115 Volts
1 Phase
60 Hz
14 Amps
