Section 2: Frame Moulding Cutting & Joining Equipment

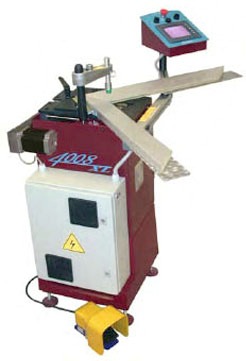

NFE-60 Cassese CS 4008 XL Underpinner

The CS 4008 XL Programmable Memory Underpinner The CS4008 XL is the Cassese machine for the 21st century. Fast performance and heavy duty design for high production, programmable memory with touch-screen interface for ease of use, and of course, Cassese quality corners! Touchscreen tells operator which wedge size and accessories to use. Stores up to 3000 profiles in memory. Unlimited profiles if full parameter barcode and scanner used. Thanks to its memory, the 4008XL makes it easy to change from a small photo frame to a large moulding within a few seconds. Very fast! Up to 3360 corners per hour (2 positions per corner).

Simple, user friendly programming
Fast setup time
High production capacity
Wide joining capacity : 190mm stroke (7 1/2″)
Ultra Powerful Double-action “push and tighten” rebate clamp
New retractable Ultra Clamp system retracts into the table leaving a flat surface – Great for big frames!
Built-in extension arms for large frames
Built-in networking and barcode set-up abilities
9 programmable wedge positions
Patented adjustable fences
New magnetic XL adjustable top clamp
No tools required to change wedge’s sizes
No pressure adjustment required
Cartridge loading activated by pneumatic cylinder
2-stage pneumatic clamping pedal
Wedge sensor
Safe. Will not fire wedges without moulding in position
Easy access to electrical and pneumatic parts
Stainless working table
Multi-Lingual
Special Kit to work at 45° (Optional)

$ Call for Pricing

This item is shipped by freight company. Shipping is not the $6.50 default on the order page. Please call for a shipping quote.

CSE-7-5-13

From the Manufacturer's Website:

Technical Data:
Mouldings Width Height Smallest internal frame size	1/8″ – 6″ (3mm to 150mm) 1/4″ – 4 3/8″ (5mm to 112mm) 3 5/16″ x 3 5/16″ (85mm x 85mm)
Stroke Length:	190mm (7 1/2″)
Wedge Sizes:	5, 7, 10, 12 & 15mm in disposable cartridges containing 275 pieces – in normal or hardwood
Net Weight:	135 kg (300 lbs)
Power Supply:	Electric: 110 v Pneumatic: Compressed air at 100 lbs psi (compressor not included)

Mouldings:
Width
Height

1/4″ – 4″ (5mm-100mm)
5/16″ – 4″ (7mm-100mm)

Net Weight

49 lbs (22kg)

Dimensions:
Length
Width
Height

24″ (610mm)
14″ (360mm)
48″ (1200mm)

Call to see if there is any pricing specials for the month.
