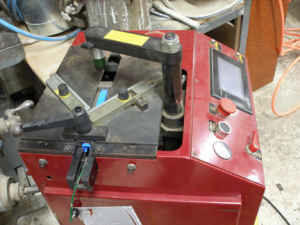

Cassese CS 3099 Ultra Air Operated Memory Frame Machine, Framing Equipment

Used Framing Equipment: Mat Cutters, Moulding Cutting & Joining Equipment, Mounting Presses, Hand Tools

We buy & sell pre-owned picture framing equipment. We also help you to sell your used framing equipment, and help you save on equipment that you may need. All Items are sold "As Is". Although we strives get obtain the best information from the seller, AIM is not responsible from inaccuracies provided to us by seller. It is the responsibility of the buyer to crosscheck information with seller or manufacturer regarding descriptions that appear in this catalog.

Do you have Questions? Feel free to our office at 330-405-9421, M-F, 10AM-5PM EST or Email us at info@skylinepictures.com

For joining your wood, plastic, MDF and LDF mouldings. With the CS 3099 Ultra Numeric Underpinner high production does not mean poor quality anymore!

Electric and air operated floor stand model.

Joins wood, plastic, MDF and LDF mouldings

Programmable for repeatable accurate joining process; stores up to 1500 profiles.

Place fasteners in up to 6 positions.

No adjustments needed; just enter the profile number and the machine immediately informs you on the best accessories and wedge size for the frame to be joined. Then it prepares itself automatically to join that frame as programmed.

No adjustment required when changing wedge sizes.

Informs the user when it is out of wedges, readies itself to receive the new cartridge, keeps the moulding in position, and completes cycle after wedges are inserted.

Has the ability to join up to 5" (130 mm) wide mouldings (+ rabet).

Provides constant quality to any production.

Very fast and easy to use.

Can join 6 to 8 sided frames automatically (optional angle attachments required).

No adjustment required for top presser.

No air pressure adjustment required when changing from soft to hard wood.

The world's most powerful double-action horizontal clamp to keep mouldings very tight together.

User friendly touch screen warns operator on any faults minimizing waste.

Adjustable fences (+/- 90 degrees) take the form of all kinds of mouldings at their back to prevent gaps on top or bottom of join.

**CS 3099 Ultra Technical Data:**
Mouldings Width Height	1/8" (3 mm) to 5 1/8" (130 mm) 1/4" (7 mm) to 3 3/4" (90 mm)
Wedge Sizes	5, 7, 10, 12 & 15mm in disposable cartridges containing 275 pieces - in normal or hardwood
Net Weight	220 lbs (100 kg)
Power Supply	Electric: 220v or 110v single phase Pneumatic: Compressed air at 85-105 lbs. p.s.i. (6-7 bars); Consumption: .02 cfm/cycle
Optional Accessories	Angle attachments for 6-sided and 8-sided frames 52" Rotating extension table with support for big frames Bar code option

This item can be picked up in California, or shipped for an additional fee by UPS. Shipping is not the $6.50 default on the order page.

Produced By: A.I.M. Enterprises, Inc. phone: 330-405-9421
