Section 2: Frame Moulding Cutting & Joining Equipment

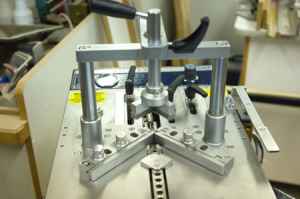

UFE-1370 ITW / AMP Mitre Mite VN4L (Long Stroke) Underpinner
ITW Pneumatic Under-pinner / V-Nailer
This machine is in Good Working Condition. It is about 6 years old, and was used as a back up machine
Price $2,295
This item can be picked up in Oregon or shipped for an additional fee by a freight company. Shipping is not the $6.50 default on the order page.
Jim-OR-6-2-11
Following info / specifications are from manufacturer's or Distributors website:
Our popular
Mitre - Mite VN4L machine has now been enhanced to assemble wider frames, up to
6 1/2 inches. This new "Long storke" version is designed for small production
runs and can precisely insert or stack v-nails into the same corner positions
frame after frame. After the Framer sets the stops (up to 3 nail positions) the
v-nails are then automatically driven at the correct positions along the joint
by simply stepping on the foot pedal and touching the hand lever. Other features
include a pneumatic load / feed system to eliminate jams, "soft clamp"
pneumatics for damage free joints and a "quick change" hold down to fit most
profiles.
Production machine joins all woods, MDF and plastic.
Designed for ease of use,
compact and well constructed for years of trouble free operation, quiet and
powerful. Particularly well suited for production work. Built on extended
lengthwise base, which can be set on or notched into work station. Two stage
foot pedal allows user to see quality of join before nailing. Nail head moves
while moulding remains stationary. Hand positioning lever, 3 firing position
stops, stacks perfectly anywhere along join. Positive air cut off feature
insures safety. Tiltable rear fence adjusts for 6 or 8 sided frames, adjusts
to join almost any profile from 1/4 in to 5 1/4 in high, and from 3/8 in to 6
1/2 in wide. Air operated. Includes 7, 10, & 15 mm nail heads, drives at 110
psi. 14 in wide x 25 in long x 14 in high. Approx 120 lbs shipping weight, can
be shipped via common carrier in single carton.
Specifications:
MACHINE SIZE:
Width 14"
Length 25"
Height 14"
Weight 113 lbs.
POWER SOURCE: Pneumatic
FRAMING CAPABILITY:
Frame Width 3/8" to 6 1/2"
Frame Height 1/4" to 5 1/4"
Tilt/Angle fence for custom fit
4 , 6, or 8 sided frames.
V-NAIL SIZES: 3, 5, 7, 10, 12, 15 mm
OPTIONAL ACCESSORIES:
Wood support table
Metal extension wings
