Section 2:  Frame Moulding Cutting & Joining Equipment

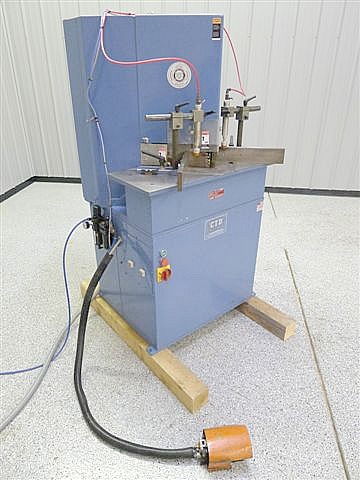

    UFE-1439   CTD N90 Double Miter Saw (Toe - Kick)

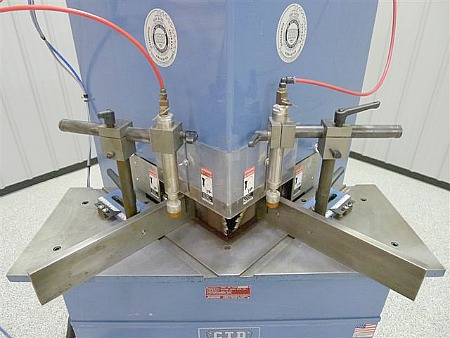

This machine is in Good Condition. This saw has 16" blade capacity. 208 - 230 / 460V 230 wired currently. 2 pneumatic hold downs.

 Price:   $4,495

This item can be picked up in Illinois or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

Bryan-IL-9-2-11/413

Information below is from manufacturer's website on the newest model. Call tech support for exact specifications that may differ :

   Manufacturer's Website:  http://ctdsaw.com  - Instruction manual can also be found here:

The Model N90 has been designed for a variety of heavy duty cutting applications, such as 45° double mitre cutting, notching of aluminum and plastic extrusions, or toe-notching of wood panels. This heavy duty machine can have blades set for notching or mitering. Blades move vertically on linear bearings on 1-1/4" (32mm) diameter hardened and ground rods. Keyed fences allow for each set-up and accurate dimensional changes.

Specifications:

Blade Capacity:
16" OD (406mm); saw blades not included.
18" OD (457mm); optional

Arbor: 1" (25mm) with 3-1/2" (89mm) saw collars; mounted on preloaded and sealed bearings; 2-belt drive; 2800 RPM of spindle.

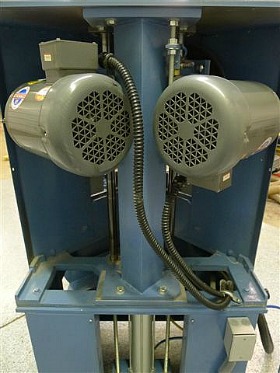

Motors & Voltages: Two, 3 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motors, 60 Hz, 1725 RPM with Dual Magnetic Starter; 5 H.P. Motors available.

Table Base: Precision machined and ground iron castings with milled keyways to guide fences; allows for easy and accurate dimensional changes.

Floor Stand: Heavy gage steel; stand is completely enclosed with 6" (152mm) dust collector outlet and scrap chute; 1200 CFM required.

Actuation: Air operated by foot valve with cover.

Air Pressure & Consumption: 6 CFM at 100 PSI (.17 cubic meters/minute at 7.03 kg/cm2) based on 6 strokes per minute; includes air filter/ regulator/lubricator with auto drain.

Size & Weight: Standard Toe-Notch Machine 42" (107cm) Wide x 42" (107cm) front to back x 62" (157cm) High; Weight 900 lbs. (410kg).

Production Rate: Up to 10 strokes per minute.

Cutting Capacity: Staggered Saw Blades/ Toe-Notch Configuration; 6" (152mm) x 6" (152mm) Deep x 4" (102mm) High

Mitre Cutting/Staggered Saw Blades; 4-1/8" (105mm) Wide x 4" (102mm) High

Mitre Configuration/Non-Staggered Saw Blades; 4" (102mm) Wide x 4" (102mm) High; up to 6" (152mm) High with special blade guard modification at extra charge.
