Used Framing Equipment: Mat Cutters, Moulding Cutting & Joining Equipment, Mounting Presses, Hand Tools
We buy & sell pre-owned picture framing equipment. We also help you to sell your used framing equipment, and help you save on equipment that you may need. All Items are sold "As Is". Although we strives get obtain the best information from the seller, AIM is not responsible from inaccuracies provided to us by seller. It is the responsibility of the buyer to crosscheck information with seller or manufacturer regarding descriptions that appear in this catalog.
Do you have Questions? Feel free to our office at 330-405-9421, M-F, 10AM-5PM EST or Email us at info@skylinepictures.com
Section 2: Frame Moulding Cutting & Joining Equipment

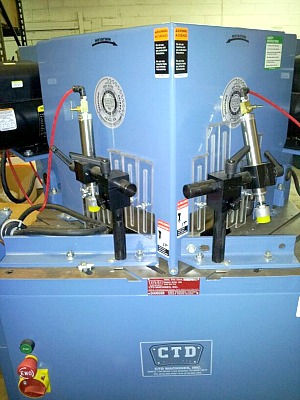

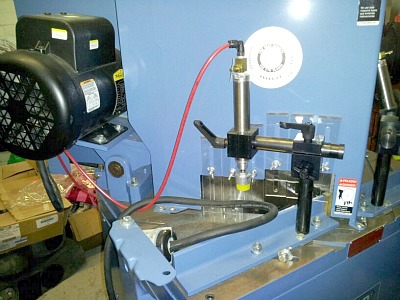

UFE-1507 CTD D45X Double Miter Saw
This machine is in New Condition.
It was bought new in 2007, and it was never used.
Includes pneumatic hold downs, eight blades, and 6ft table with a 48" extender.
Price: $6,495
This item can be picked up in Georgia or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.
Lynette-GA-12-22-11
Information below is from manufacturer's website on the newest model. Call tech support for exact specifications that may differ :
Manufacturer's Website: http://ctdsaw.com - Instruction manual can also be found here:
CTD D45AX Fixed 45 Degree Frame Saw
The D45 is popular world wide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes two 45 degrees mitres at one time, saving time and materials. D45's are used by thousands in the decorative arts trade throughout world.
Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.
Blade Capacity: 10" OD (254mm) ,12'' OD, 14'' OD
Spindle & Pivot: Both mounted on pre-loaded and sealed ball bearings.
Arbor: 5/8 (16mm) with 2-1/4 (57mm) saw collars.
Iron Castings: Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.
Motors & Voltages: 1-1/2 H.P., 3450 RPM with Dual Magnetic Starter.
Table Height: 34-1/2 (88cm) from floor.

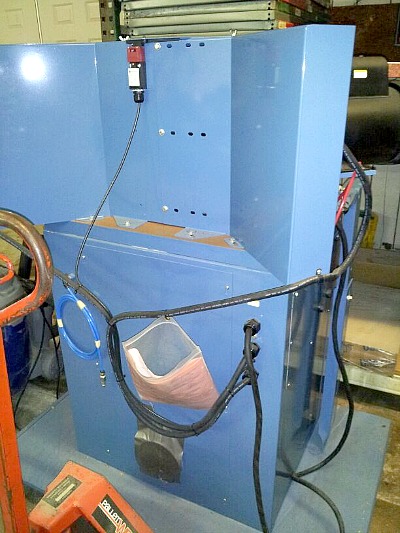

Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6 dust outlet. 1200 CFM required.
Length of stroke adjustment:
The D45AX is unique in that the stroke of the machine and the position of
the blade above the work can be adjusted to use only the stroke needed to
cut a particular moulding or extrusion. Saw heads reverse immediately, on
release of the foot valve, thereby saving wasted time and motion.
Production Rate: The D45AX is
capable of cycling at one second intervals. However, actual production
rates vary with the type and width of material to be cut.
Size: Standard machine, without
tables or gages; weight 550 lbs. 46'' wide x 22'' front to back x 51-1/2''
high.
Actuation: Pneumatic foot valve
with cover
Air Pressure: 75 PSI with Air
Filter/Regulator/Lubricator; includes Auto Drain.
Air Consumption: 1.0 CF per 10 strokes at 75 PSI.
Return to Frame Moulding Cutting & Joining Equipment Main Page #110
