Section 14: Industrial Printing Equipment / Wide Format Equipment

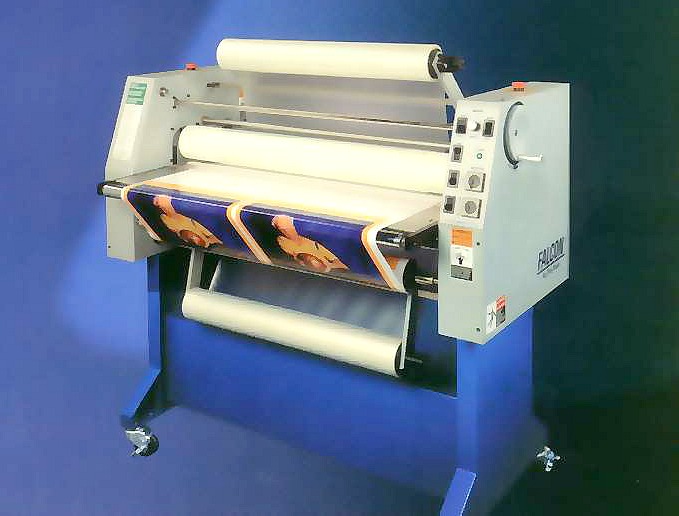

IPE-95   GBC Falcon 36 Laminator

This unit is in Very Good Condition.

Refurbished with new rollers. Includes 30 warranty

Includes crating for shipping

From the manufacturer:

This is a workhorse of a machine extremely well built for many years of dependable use for those who do any laminating.   Can do pressure sensitive or heat activated material. The top and bottom rollers can be heated individually or together and are 42" wide with a high release surface.  Temperature range for each roller is approximately 300F.

Falcon 36 Specifications:

Laminating Rolls: 42" roll face with high release surface, upper and lower rolls internally heated.

Laminating Opening: 1.5" maximum opening controlled with hand crank
Laminating Material: Heat activated and pressure sensitive materials 0-39" wide on a 3" ID core, 10" maximum diameter

Laminating speeds: 0 to 18 fmp with variable speed, reversible action, start and stop controlled either through the instrument panel or with the footswitch.

Power: 220V 60hz 1ph 30A

Dimensions: 56" x 31" x 56"

Weight: 300lbs

Easy to Operate

 Variable nip opening for materials
to 1.5 inches

Downward pressure and heat capacity
for vinyl transfer

1 ligh release silicon tolls
« Accurate temperature control
• No compressor required
• Shaftless film mount for ease of film
positioning and fast change over
• Forced air cooling system for quality
encapsulation
• Optional fan table to flatten and
smooth prints for easy entry

Convenience
• Preset output rollers require
no adjustment
• Output rollers for mounting without
cool down period
• Optional output table for hard
substrates and rear input feed
• Optional output slitters to trim prints
as they exit the laminator, additional
slitters available for multiple trims
" Optional rewind for rolled prints
• Optional unwind for rolled prints

Price    $7,950

This item can be picked up in Florida or shipped for an additional fee by freight company. Shipping is not the $6.50 default on the order page.

Harry-FL-7-15-14/524
