Used Framing Equipment: Mat Cutters, Moulding Cutting & Joining Equipment, Mounting Presses, Hand Tools
We buy & sell pre-owned picture framing equipment. We also help you to sell your used framing equipment, and help you save on equipment that you may need. All Items are sold "As Is". Although we strive to obtain the best information from the seller, AIM is not responsible for inaccuracies provided to us by seller. It is the responsibility of the buyer to crosscheck information with seller or manufacturer regarding descriptions that appear in this catalog.
Do you have Questions? Feel free to our office at 330-405-9421, M-F, 10AM-5PM EST or Email us at info@skylinepictures.com
Section 1: Mounting Equipment

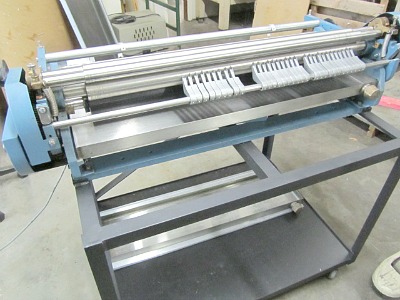

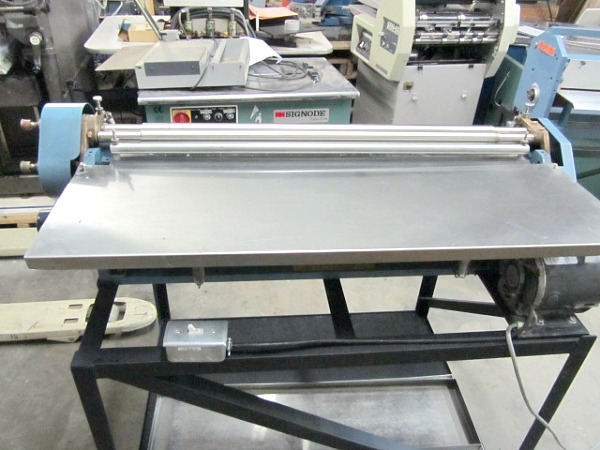

UFE-M1278 Schaefer 32" Sheet Cementer / Glue Machine and Schaefer 32" Nip Roll Machine / Rotary Press
Both units are in Good Condition.
These two units come as a set.
Schaefer 32” Sheet Cementer / Glue Machine
Model 32 TLC Serial # 22959 Manufactured 2001
Sheet Cementers are adhesive roll coating machines that are used to apply a thin layer of adhesive to large labels or printed sheets for mounting to corrugated, chipboard, or foam core board.

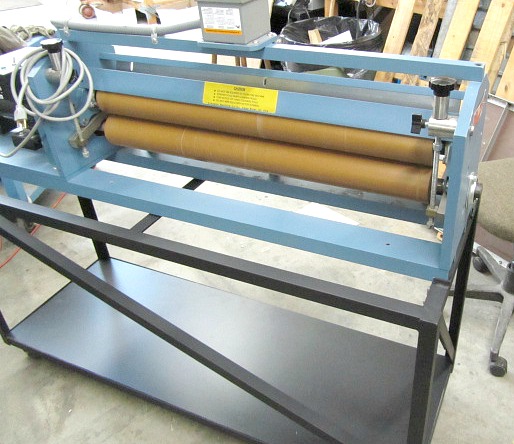

Schaefer 32” Nip Roll Machine / Rotary Press
32 SP / 39CR
SP Smoothing Press
The model SP smoothing press is designed for laminating of labels or paper face-sheets to substrates such as corrugated, chipboard and foam core board. The opening between the nip rollers can be adjusted from rolls touching to an opening of 1˝ inches. The squeeze pressure between the rolls is the weight of the upper roll, which exerts a pressure of 2 lbs per linear inch. This is sufficient to create bubble-free laminations, but not so high that corrugated and foam core materials are crushed or deformed. The rolls are covered with a special non-tacky urethane rubber with other types of roll coverings available (see "other options" below). For laminating work requiring higher pressure between nip rolls, the SP can be equipped with the air cylinder option (see below) to increase the pressure between the nip rolls. With this option, the pressure between the rolls can be increased to approximately 500 lbs at 100-psi air pressure, and can be set at different levels by adjusting the air pressure on the cylinders.
(Replacement List $12,900)
Price $6,995 for Both Machines
This item can be picked up in Texas or shipped for an additional fee by common carrier. Shipping is not the $6.50 default on the order page.
Bill-TX-2-21-13
Manufacturer’s website & info:
http://www.schaeferco.com/smoothing_press.html
Also note: Although we strive for accuracy, some specifications are provided to us by seller. It is a good idea to double check specifications by manufacturing company for possible errors of information. Feel free to call us if you have further questions before purchasing.
Return to Mounting Equipment Page #82
