Section 2: Frame Moulding Cutting & Joining Equipment

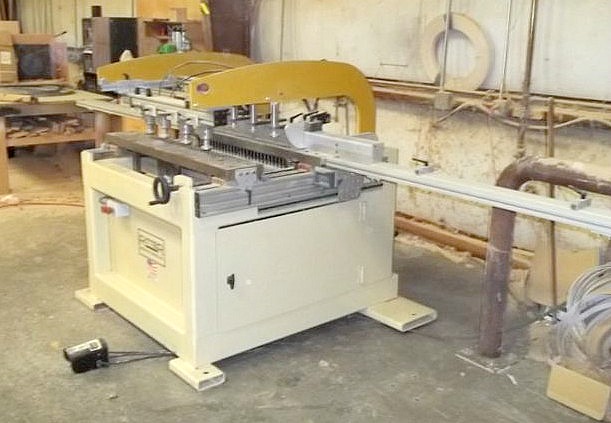

UFE-522 RITTER (R246) LINE BORING MACHINE
This unit is in Good Condition.
Voltage: 230/60/3 phase
"From the Manufacturer's website:"
Capacity (2) 23-Spindle gear
driven drill heads.
Drills from the bottom.
32 mm Spindle Centers.
Distance between rows 4" - 22".
Both heads adjustable on rack & pinion.
(2) 4" bore drill head driven cylinders.
3-Position drill head stroke control turret.
(2) 8" wide x 49" long machined steel worktable
surface moves along precision table rail guide system.
(2) 3 HP - 1,725 RPM motors.
Spindles driven by steel helical gears.
Precision drill head carriage guide rail system.
Above table tool change position.
(2) Air index pins for continuous line drilling.
(2) 53" Traveling back fence extensions with (2)
adjustable position material stops per extension.
(4) Adjustable position front head pneumatic hold
downs.
Single or double row cycle drill head stroke
control, magnetic motor controls.
Foot pedal operated.
Compressed air requires 90 PSI, drill bit
requirements (24) RH and (22) LH drill bits with 10 mm shaft & 55 mm OPL
Price: $7,500
This item can be picked up in North Carolina or shipped for an additional fee by freight company. Shipping is not the $6.50 default on the order page.
Dan-GWM-NC-11-7-11/326
