Section 5:  Production Woodworking Equipment

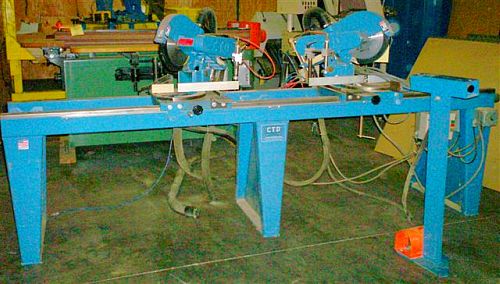

         UFE-504    CTD 12" Double End Trim Mitre Saw

Model #DM200R

This machine is in Good Working Condition.



Below is information from Manufacturer's Website. Check with Tech Support for any differences between what is being sold and the newer generation machines.



From Manufacturer's Website:



CTD 12" Double End Trim Miter Saw

The DM200R is popular world wide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes one 90 degree angle and one 45 degree angle at one time, saving time and materials. DM200R's are used by thousands in the decorative arts trade throughout world.

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.



Blade Capacity: 12" OD (305mm) ,12'' OD, 14'' OD



Spindle & Pivot: Both mounted on pre-loaded and sealed ball bearings.



Arbor: 1" (25mm) with 2-1/2 (64mm) saw collars.



Iron Castings: Tables are precision machined and ground iron castings with milled keyways in tables to guide fences.
.

Motors & Voltages: 2 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motors, 60 Hz, 3450 RPM, with starters and voltage protection; 3 H.P. 3 Phase motors available.


Table Height:Saw heads swivel from 90° to 45° towards each other with degree markings and pointer; stops are at 90° and 45°; angular adjustment of saw head away from each other available as option; other angles possible; phenolic chip breaker included.


Floor Stand: Heavy gage steel; eight foot centers with traveling right hand carriage on rack and pinion; length measuring scale; optional length centers available to 40 feet 12M; Digital Length Measurement available as optional accessory.


Price $ 6,400

This item can be picked up in Vermont, or shipped by a freight company for an additional fee.
