Section 5:  Production Woodworking Equipment

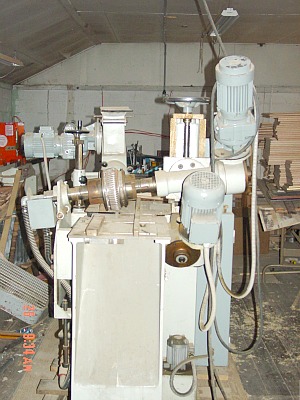

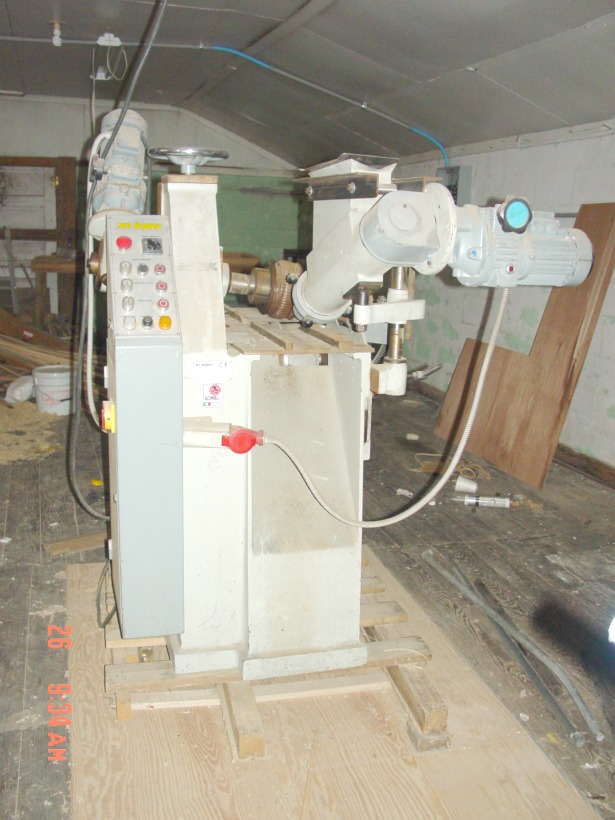

UFE-534   Renzo Borgonovo  Compo I  Embossing Press

This unit is in Good Working Condition.

Includes 3 x 5gal buckets of material

Manufactured in 1997

List Price $35,000

***Reduced***Item # UFE-534   $7,495 or Best Offer

From the manufacturer’s website ( call manufacturer to determine the difference to what is being sold in this listing and the newest generation below)

RENZO BORGONOVO ( 300/P ) COMPO EMBOSSER / HOT ENGRAVER

Description

Compo (wood paste) and hot embossing machine onto wood picture frames, mouldings, furniture and other narrow work pieces.

Compo embossing: Wood paste is placed in a hopper using an auger it compacts the paste to a uniform consistency and applies it to the surface of the workpiece. As the workpiece advances the engraved metal wheel transfers the pattern onto the pulp.  The excess pulp on the edges are trimmed and recycled.  Once the compo is dried it can be painted, stained or lacquered.

Hot Engraving: Pressure and engraved heated steel wheel imprints the pattern into the wood.  Equipped with a water cooled shaft to avoid flexing and keep heating on the wheel alone.  Infinite adjustable propane torch heats the metal wheel at different angles and distances changing the heat for hard and soft woods or giving different visual effects.

Embossing wheel can be tilted for inclined embossing. Motorized support roller moves the material through the machine.  Prismatic wheel supports the workpiece while allowing various angles. An additional wheel supports the wing of uneven workpieces.  Metal support flanges and guides position the workpiece.

4 - 27 FPM Hot embossing feed speed

12 - 25 FPM Compo embossing feed speed

3.9" Max. embossing width

15.7" Max. piece width

60mm Shaft diameter

3mm Max. embossing depth

.5 HP Upper drive motor

.75 HP Lower drive motor

1.25 Wood paste pump motor

.125 HP Water circulating pump

55" x 55" x 63" Tall

  • Bulk feed system accepts full can/box (around 7 gallons) of compo
  • Safe recycle system (patent pending) allows up to 80% of excess material to be automatically recycled
  • Positive material feeding system prevents slipping & distortion of patterns
  • Three axis extruder applicator head
  • Three axis embossing head
  • Nickel plated steel catch basin for excess compo material
  • Large auger screw (largest in industry)
  • All unpainted structural parts are of heavy, nickel plated steel
  • Variable speed material feed up to 100 FPM
  • Auger variable speed control
  • Impression head motorized with variable speed control
  • Heavy duty, oversized motor
  • Machine base constructed of heavy steel (Machine Weight = 1764 lbs)
  • Inventory of spare parts and factory trained technician available

Technical Specifications

Machine weight 1764 lbs
Excess material allows up to 80% to be recycled
To load full can approximately 7 gallons
Variable speed up to 100 FPM
Dimensions 5' 7" x 4' 7" x 7' 2"

 This item can be picked up in Tennessee or shipped by a freight company for an additional fee. Shipping is not the $6.50 default found in the shopping cart.

Ken-TN-2-13-13 $9,995 / 2-13-13 $9,750 / 5-13-13 $7,495/867
