Section 5:  Production Woodworking Equipment

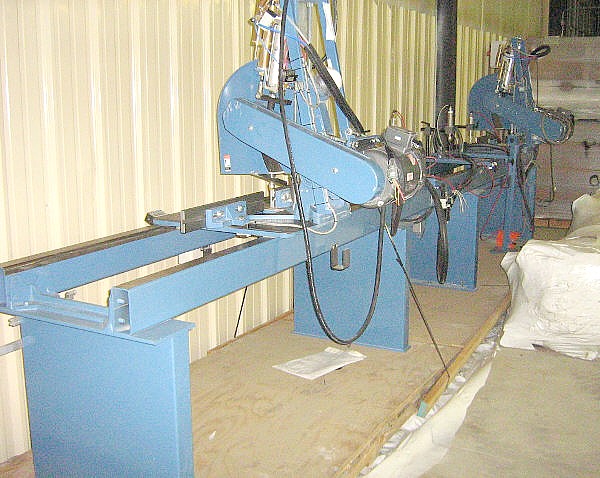

UFE-535   CTD DM-400, 16-inch/20-inch Double-End Trim-Miter Saw

This unit is in Very Good Condition.

Manufacturer info:

Standard Specifications, (to be confirmed):
- 20' max. overall cutting capacity at 90 degrees
- (2) 7.5 HP, 230/460/60/3 saw motors, (belt driven arbors)
- (10) cycles per minute production capability, (adjustable)
- 20" diam. saw blades, (1" diam. bore)
- (6" x 10") 90 deg ave cutting capacity & (5-1/2" x 8") 45 deg ave. cutting capacity
- Saw heads swivel from 90 to 45 degrees toward each other
- Air over oil saw stroke cylinders
- Cycle actuation via 2-hand anti-tie down buttons, (hold-down clamps acturated by foot-pedal)
- Adjustable fences & pneumatic hold-downs
- (4) 4" diameter dust-outlets
- ? x 54" x 80" approx. overall dimensions

Price   $19,950

This item can be picked up in North Carolina or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

Tom-NC-12-4-12/392
