Section 2:  Frame Moulding Cutting & Joining Equipment

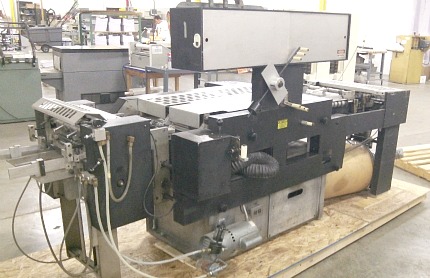

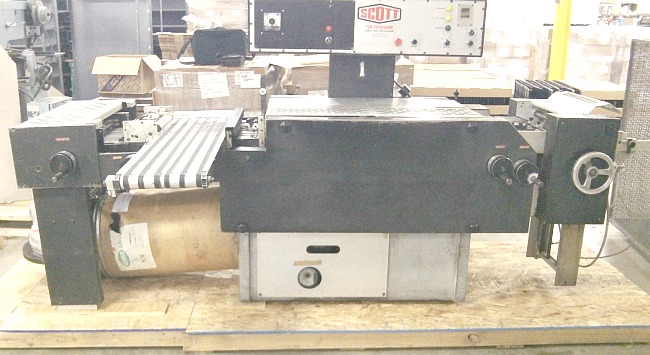

  TM-31  Scotty 10000 Tabber / Plastic Tab Machine

This unit is in Good Condition.

Scott 10,000 Automatic Plastic Index Tabbing Machine

" From the seller: Was running when taken out of service. Spoke to operator said it ran pretty good. It has a set of 1/2" tab cutting knifes installed. I have rebuild some of these machines and they are easy to fix and find parts. This machine doesn't have all the electronic parts to mess with."

For additional cost I would add the following new & used parts:

Tab cutting knifes, used   3/8"

Recovered red rollers  need old rollers in exchange.

New Parts:

Roller heat probes

temp probes

Red block (holds brush  holder)

Brass brush holders (New)

Carbon brushes

Silver brush

Slip rings

Slip ring plastic cover

Potter Brumfield relay

Nylon register wheel hold downs 1"dia.

Cross conveyor belts

Reregister belt they go under cross conveyor

Motor drive belt

Disk brake pads (for mylar feed rollers)

Paper feed Sheet separate fingers

Rubber kick back rollers

Used vacuum paper feed nozzles.

"From the manufacturer:"

Scott Ten Thousand Automatic Plastic Index Tabbing Machine
Speed     10,000 plastic index tabs
Sheet Size     Maximum: 14-3/4" x 13-1/2" (381 mm x 304.8) Minimum: 5" x 4-3/8" (127 mm x 111.1 mm) Binding Side Listed First
Plastic Size     Maximum: 5-1/2" (139.7 mm) Minimum: 1" (25.4 mm)
Tab Cut Size     Maximum: 5" (127 mm) Minimum: 1/2" (12.7 mm)
Standard Knife Sizes     1/4", 3/8", 1/2", 5/8", 3/4" (6.3mm, 9.5mm, 12.7mm, 15.9mm, 19.1mm)
Paper Load     Approximately 2,000 sheets
Counter     1-999,999
Motor     2 hp.
Electrical Requirement     40 amp, 220 V single phase, 50 or 60hz
Ball Bearings or Bushings on all moving parts
Lubrication     Fully Automated
Floor Space Required     101" x 198" (2565.4 mm x 5029.2 mm) w/ conveyor
Dimensions     Length: 126" (3200.4 mm) includes Conveyor Width: 48" (1219.2 mm) 77" (1955.8 mm) includes Conveyor Height: 69" (1752.6 mm)
Shipping Weight     3,325 lbs. (1,511.36 kg)

$ Call for Pricing

This item can be picked up in Missouri or shipped for an additional fee by a freight company. Shipping is not the $6.50 default on the order page.

Jim-MO-7-8-13/858
