TM-79  Bindfast 5 / Bind-Fast 5 System

Short-run / On-demand Padding and Binding System

Crosscheck with manufacturer for any difference between what is being offered and what shows below:

Technical information pdf http://www.printfinishing.com/product-brochures/Standard/Bindfast5.pdf

Manufacturer's website: http://www.sdmc.com/

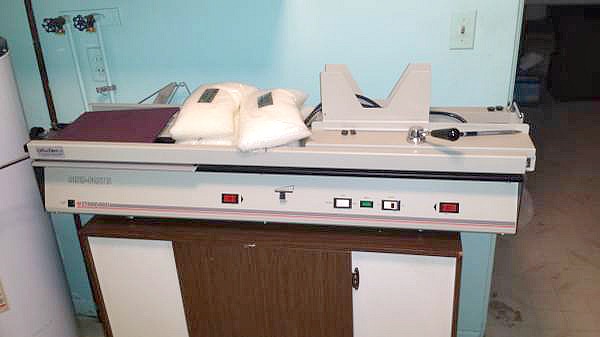

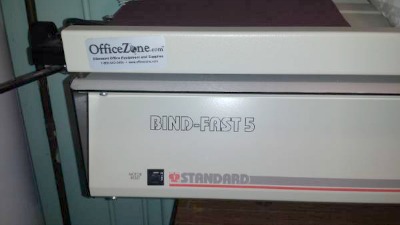

Standard Bind-Fast 5 Binding System

The Standard Bind-Fast 5 is the ideal tabletop padding and binding system for meeting the demands of today's short-run/on-demand production environments. Versatile enough to perform three different bind styles -- instant padding, 'wrap-around' perfect book binding, and report binding -- the Bind-Fast 5 is simple, quick and creates binds for just pennies a bind.

Features:

• Instant Padding - The Bind-Fast 5 in padding mode is an exceptional padding machine with the ability to pad over 1,000 quarter inch thick pads an hour.

• Wrap-Around Perfect Binding - The Bind-Fast 5 is transformed from an exceptional padding machine into a perfect-bound book binding system in a matter of seconds with the use of an optional Nipper Clamp Cover Table.
  The Nipper Clamp Cover Table allows you to quickly and easily produce up to 150 perfect bound books per hour in sizes from 1 3/4" in thickness to 15 1/4" in length.

• Report Binding - The Bind-Fast 5 also features report style binding when faster book production or a larger book thickness is required.

Specifications:

• Model: Bindfast 5

• Serial Number: 014814

• Electrical: 115V / 8A / 60Hz

• Production Rates:

  • Padding: Up to 1000 (1/4") pads per hour

  • Perfect Binding: Up to 150 books per hour

  • Report Binding: Up to 360 (1/2") books per hour

• Cover Stock: 20# to 110#, up to 10pt Cover Stock (Subject to grain direction and book thickness)

• Maximum Perfect Binding: 1 3/4" thick x 15 1/4" length With optional Nipper Cover Table

• Padding/Binding Capacity: 2 sheets to 600 sheets (3")

• Maximum padding/Binding Length: 17 1/2"

• Cycle Speed: 6 to 13 seconds

• Adhesive Tank Capacity: 25 oz.

• Adhesive Temperature:

  • Ready: 340°

  • Stand-by: 235°

• Adhesive Coating thickness: 0 to 1/16"

• Coating Action: Reverse rotating applicator drum

• Separator Plates: 2

• Warm-up Time:

  • Cold: 12 minutes

  • Stand-by: 3 minutes

• Bind-Fast 5 is manufactured in the USA and is UL and CSA approved.
