Item # NFE-30   $ Call for Pricing

Call to see if there is any pricing specials for this month.

Full Image

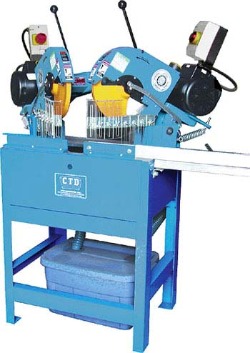

 CTD D20R Single Double Miter Saw

CTD MODEL D20R A revolutionary idea--right and left saw heads, individually operated on a common base. Gives you a fast, accurate double mitre cut-off that beats anything in itís price class in the world.

NEW with factory warranty

From the Manufacturer's Website:

Standard Features and Specifications:

  • Blade Capacity: 12" OD (305mm); saw blades not included.
  • Spindle & Pivot: Both mounted on pre-loaded and sealed bearings; uses our time tested 200R Series saw head; saw arm, pivot brackets and table are precision machined and ground steel plate and iron.
  • Arbor: 1" (25.4mm) with 2-1/2" (64mm) saw collars; 3700 RPM of spindle.
  • Motors & Voltages: 1 H.P. single phase, 115 Volt, Totally Enclosed Fan Cooled Motors with toggle switch and plug; each motor draws 15 amps at 115 Volt; completely enclosed 2-belt drive; 230 Volt with Dual Magnetic Starter available.
  • Floor Stand: Close coupled heavy gage steel floor stand with removable dust and scrap drawer; Rabbet Measuring System included.
  • Actuation: Manual hand operation of independent saw heads.
  • Size & Weight: 46" (117cm) Wide x 22" (56cm) front to back x 56" (142cm) High"; Weight 300 lbs. (136 kg).
  • Production Rate: Up to five frames per minute; actual production rates vary with the type and width of material to be cut.
  • Dust Collection & Scrap: The D20R is provided with a dust and scrap drawer; most of the dust and chips will fall into this drawer; empty as needed; 4" (102mm) dust outlet available; 600 CFM required.
  • Cutting Capacity: 3" (76.2mm) High x 5-3/4" (146mm) Wide on non-ferrous metals, wood, and plastic sections

This item can be picked up in California, or shipped by freight company. Shipping is not the $6.50 default on the order page. Please call for a shipping quote.

CTD Machine March - 2011

$ Call for Pricing  Return Home



Item # NFE-31   $ Call for Pricing

Call to see if there is any pricing specials for this month.

Full Image

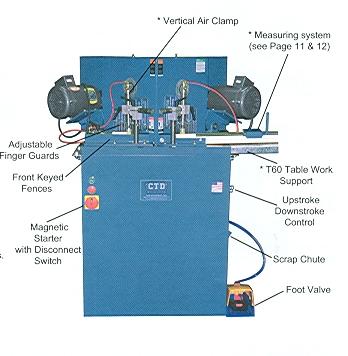

CTD D45AX Fixed 45 Degree Frame Saw

The D45 is popular world wide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes two 45 degrees mitres at one time, saving time and materials. D45's are used by thousands in the decorative arts trade throughout world.

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

NEW with factory warranty

From the Manufacturer's Website:

Standard Features and Specifications:

  • Blade Capacity: 10'' OD, 12'' OD, 14'' OD Saw blades not included.

  • Arbor: 5/8'' with 2-1/4'' saw collars.

  • Spindle and Pivot: Both mounted on pre-loaded and sealed ball bearings.

  • Iron Castings: Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.

  • Motors and Voltages:1-1/2 HP single phase 115/230V and 3 phase 230/460V, totally enclosed fan cooled motors, 60 Hz, 3450 RPM with dual magnetic starter. Also includes rotary disconnect switch and blade guard interlock switch. Consult factory for amperage load of motors.

  • Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6'' dust outlet. 1200 CFM required.

  • Table Height: 34-1/2'' from floor.

  • Blade Wear and Angular adjustments: Each saw head has adjustments for blade variation. Allows for precision alignment of blades to minimuze scrap. Saw heads are adjustable up to 3 degrees, always assuring perfect mitres.

  • Length of stroke adjustment: The D45AX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular moulding or extrusion. Saw heads reverse immediately, on release of the foot valve, thereby saving wasted time and motion.

  • Production Rate: The D45AX is capable of cycling at one second intervals. However, actual production rates vary with the type and width of material to be cut.

  • Size: Standard machine, without tables or gages; weight 550 lbs. 46'' wide x 22'' front to back x 51-1/2'' high.

  • Actuation: Pneumatic foot valve with cover

  • Air Pressure: 75 PSI with Air Filter/Regulator/Lubricator; includes Auto Drain.

  • Air Consumption: 1.0 CF per 10 strokes at 75 PSI.

This item can be picked up in California, or shipped by freight company. Shipping is not the $6.50 default on the order page. Please call for a shipping quote.

CTD Machine March - 2011

$ Call for Pricing  Return Home



Item # NFE-32   $ Call for Pricing

Call to see if there is any pricing specials for this month.

Full Image

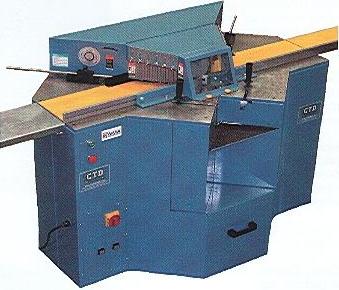

CTD "Mitre Max" DMC 70A 13" 45 degree Double Mitre Cross-cut Saw

The CTD "Mitre Max" DMC 70 is a heavy duty 45 degrees fixed Double Mitre Cross-cut Saw. Using an advanced linear track guiding system, this saw will cut up to 8'' wide and 4'' high. The cross cut horizontal action allows the two blades to cross over the fence intersecting point, creating virtually zero scrap.

NEW with factory warranty

From the Manufacturer's Website:

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

  • Blade Capacity: 13'' OD (330mm); saw blades not included

  • Arbor: 1'' (25mm) with 3'' (76mm) saw collars; mounted on preloaded and sealed bearings; 2 groove belt drive; 3450 RPM of spindle

  • Motors and Voltages: Two 1-1/2 HP single phase 230V totally enclosed fan cooled motors; 60Hz, 3450 RPM with dual magnetic starter. Also includes rotary disconnect switch and blade guard interlock switch

  • Table Base: Precision machined and ground steel plate.

  • Floor Stand: Heavy gage steel; stand is completly enclosed with two 4'' (101mm) dust collector outlets and removeable dust and scrap drawer.

  • Tables and Measurement system: Includes 60'' (152 cm) long lined vision gauge for measuring inside mitres; a 72'' (189 cm) long outside fence with tape, pointer and stop; and infeed and outfeed material support tables 10'' (25 cm) wide x 48'' (122cm) long.

  • Actuation: "H" model is manually hand operated. "A" model is pneumatically operated with options to operate left blade, right blade, or both blades. "A" model includes two pneumatic horizontal clamps and FRL unit with auto drain.

  • Air Consumption: 3 CFM at 80 PSI based on 10 strokes per minute; includes air filter/regulator/lubricator with auto drain

  • Size and Weight: 57'' wide x 33'' front to back x 45'' high. Overall length with tables and measuring system is 153''. The weight of the machine is 650 lbs.

  • Production rate: up to 10 strokes per minute

  • Cutting Capacity: 8'' wide and 4'' high

This item can be picked up in California, or shipped by freight company. Shipping is not the $6.50 default on the order page. Please call for a shipping quote.

CTD Machine March - 2011

$ Call for Pricing  Return Home



Item # NFE-33   $ Call for Pricing

Call to see if there is any pricing specials for this month.

Full Image

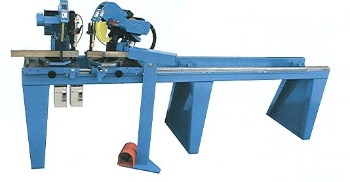

CTD DM200R 12 Double End Trim Mitre Saw

Double end cut-off saws are fast, versatile and accurate. Two or more saws make a variety of cuts on both ends of a work piece. Lengths are adjusted by a rack, pinion and scale. Angles are calibrated, and set-ups are fast. Four 12'' to 20'' blade size Double Mitre and Compound Double End Trim saws are available with many options and lengths.

NEW with factory warranty

From the Manufacturer's Website:

Standard Features and Specifications:

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

  • Blade Capacity: 12'' OD Saw blades not included
  • Spindle and Pivot: Uses our time tested 200R series saw head; precision ball bearing spindle and pivot shaft are sealed and preloaded for guaranteed accuracy; 0.001 alignment of spindle and pivot shaft.

  • Arbor: 1'' with 2-1/2'' saw collars; 3700 RPM of spindle.

  • Motors and Voltages: 2 HP 3 phase 230/460V totally enclosed fan cooled motors, 60Hz, 3450 RPM with magnetic starters and voltage protection; 3 HP 3 phase motors available.

  • Iron Castings: Tables are precision machined and ground iron castings with milled keyways in tables and guide fence.

  • Table: Saw heads swivel from 90 degrees to 45 degrees towards each other with degree markings and pointer; stops are at 90 degrees and 45 degrees; angular adjustment of saw head away from each other available as option; other angles possible; phenolic chip breaker included.


This item can be picked up in California, or shipped by freight company. Shipping is not the $6.50 default on the order page. Please call for a shipping quote.

CTD Machine March - 2011

$ Call for Pricing  Return Home
