Used Framing Equipment:  Mat Cutters, Moulding Cutting & Joining Equipment, Mounting Presses, Hand Tools

We buy & sell pre-owned picture framing equipment. We also help you to sell your used framing equipment, and help you save on equipment that you may need. All Items are sold "As Is".  Although we strives get obtain the best information from the seller, AIM is not responsible for inaccuracies provided to us by seller. It is the responsibility of the buyer to crosscheck information with seller or manufacturer regarding descriptions that appear in this catalog.

Do you have Questions?  Feel free to our office at 330-405-9421, M-F, 10AM-5PM EST or Email us at info@skylinepictures.com

Section 2:  Frame Moulding Cutting & Joining Equipment

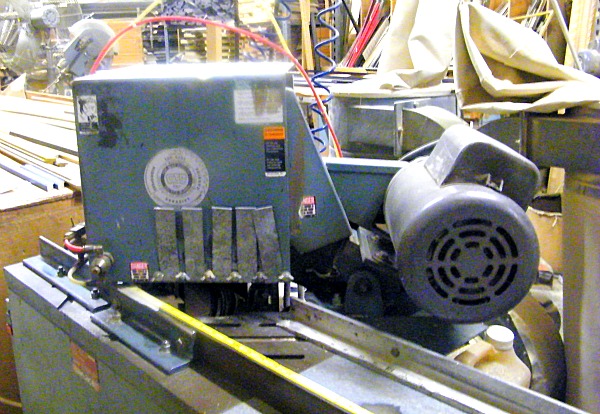

    UFE-1227    CTD D45A Double Miter Saw

This machine is in Good Working Condition. This machine has been well maintained. It is currently used to cut wood.

  ***Reduced***Price:   $2,150 Or Make Offer

This item can be picked up in California or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

Joseph-CA-2-4-11 $3,350 / 1-25-12 $2,995 / 8-16-12 $2,895 / 11-13-12 $2,595 / 4-1-15 $2,150 s

Information below is from manufacturer's website on the newest model. Call tech support for exact specifications that may differ :

   Manufacturer's Website:  http://ctdsaw.com  - Instruction manual can also be found here:

CTD D45AX Fixed 45 Degree Frame Saw

The D45 is popular world wide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes two 45 degrees mitres at one time, saving time and materials. D45's are used by thousands in the decorative arts trade throughout world.

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

Blade Capacity: 10" OD (254mm) ,12'' OD, 14'' OD

Spindle & Pivot: Both mounted on pre-loaded and sealed ball bearings.

Arbor: 5/8 (16mm) with 2-1/4 (57mm) saw collars.

Iron Castings: Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.

Motors & Voltages: 1-1/2 H.P., 3450 RPM with Dual Magnetic Starter.

Table Height: 34-1/2 (88cm) from floor.

Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6 dust outlet. 1200 CFM required.

• Length of stroke adjustment: The D45AX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular moulding or extrusion. Saw heads reverse immediately, on release of the foot valve, thereby saving wasted time and motion.

• Production Rate: The D45AX is capable of cycling at one second intervals. However, actual production rates vary with the type and width of material to be cut.

• Size: Standard machine, without tables or gages; weight 550 lbs. 46'' wide x 22'' front to back x 51-1/2'' high.

• Actuation: Pneumatic foot valve with cover

• Air Pressure: 75 PSI with Air Filter/Regulator/Lubricator; includes Auto Drain.

• Air Consumption: 1.0 CF per 10 strokes at 75 PSI.
