List Price $278

Item # UFE-1133   $150

Full Image

 Sale Pending  10-1-10    Return Home

Item # UFE-1134   $2,850

Full Image

CTD D45AX Double Miter Saw

Cuts wood or metal

This machine is about 16 years old, and Good Working Condition. Includes: set of 12" blades for metal, and one for wood; spray mister, spare rebuilt motor, and dust collector (not shown).

 Single Phase / 230 V /  1.5 HP / 10 AMP per / 30 AMP breaker recommended

From Manufacturer's Website:

CTD D45AX Fixed 45 Degree Frame Saw

The D45 is popular world wide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes two 45 degrees mitres at one time, saving time and materials. D45's are used by thousands in the decorative arts trade throughout world.

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

Blade Capacity: 12'' OD

Spindle & Pivot: Both mounted on pre-loaded and sealed ball bearings.

Arbor: 5/8 (16mm) with 2-1/4 (57mm) saw collars.

Iron Castings: Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.

Motors & Voltages: 1-1/2 H.P., 3450 RPM with Dual Magnetic Starter.

Table Height: 34-1/2 (88cm) from floor.

Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6 dust outlet. 1200 CFM required.

• Length of stroke adjustment: The D45AX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular moulding or extrusion. Saw heads reverse immediately, on release of the foot valve, thereby saving wasted time and motion.

• Production Rate: The D45AX is capable of cycling at one second intervals. However, actual production rates vary with the type and width of material to be cut.

• Size: Standard machine, without tables or gages; weight 550 lbs. 46'' wide x 22'' front to back x 51-1/2'' high.

• Actuation: Pneumatic foot valve with cover

• Air Pressure: 75 PSI with Air Filter/Regulator/Lubricator; includes Auto Drain.

• Air Consumption: 1.0 CF per 10 strokes at 75 PSI.

This item can be picked up in AZ or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

Neil-AZ-8-13- 10

Sold - Neil 11-15-10  Return Home

List $3,720 ($3,400 + $320)

Item # UFE-1135  $ 1200

Full Image

Morso-F Chopper

This unit is in Good Working Condition.  Included is a 60" extended rail, and two extra set of  blades (each set sharpened only once).

Note: Miter Saw in photo is not included.

Serial #     Manufactured: about 1990?

This item can be picked up in Arizona, or shipped for an additional fee by common carrier. Shipping is not the $6.50 default on the order page.

Neil-AZ-8-13-10

Sold 9-30-10      Return Home

Replacement $2,748 List Price

Item # UFE-1136   $995

Full Image

Mitre Mite VN2

Mitre Mite VN2  V-Nail Frame Assembly Machine

This unit is in Good Condition. Includes: air clamp and accessories: 7mm, 10mm, and 15mm heads. This is the earlier generation to the VN2+1.

Manufactured: pre 1990

The following information is from the ITW AMP / Manufacturer's website: Contact manufacturer to determine what may be different between the VN2 & VN2+1.

The Mitre-Mite VN 2+1 is a bench top frame assembly machine and our most popular model with the Custom Framer. It is compact and well constructed, built for many years of trouble free operation. With this machine, the Framer sets the front and back stops for V-Nail insertion. The frame is then moved across the nail head and V-Nails can be driven or stacked anywhere along the frame joint. Other features include a pneumatic load / feed system to eliminate jams, "soft clamp" pneumatics for damage free joints, and a "quick change" hold down to fit most profiles.

Specifications:
Machine Size: Width/12" , Length/19" , Height/14" , Weight/75lbs
Power Source: Pneumatic
Framing Capability: Frame Width 3/8" to 5" / Frame Height 1/4" to 5 1/4"
V-Nail sizes: 3,5,7,10,12,15 mm

This item can be picked up in Arizona, or shipped for an additional fee by common carrier. Shipping is not the $6.50 default on the order page.

Neil-AZ-8-13-10

Sold 9-30-10       Return Home

List $1500

*** Price Reduced Item # UFE-1137   $ 495

Full Image

Jun-Air Silent Air Compressor

Unit is in Good Working Condition.

This item can be picked up in Arizona, or shipped for an additional fee by common carrier. Shipping is not the $6.50 default on the order page.

Neil-AZ-8-13-10 $600 / 11-16-10 $495

Order This Item      Return Home

List Price $ 7,750+

Item # UFE-1138   $ 2,495

Full Image

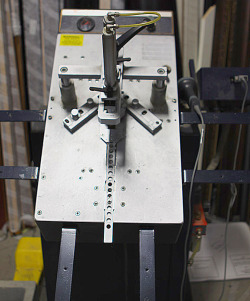

 ALFAMACCHINE ( ITW )Minigraf 4 Memory Programmable

V-Nail Frame Assembly Machine

This unit is in Very Good Condition.

Serial # 47669     Manufactured: about 2005

Includes: Tilt stand, bar code scanner

Made in Italy - Part of the ITW family

The following information is from the ITW AMP / Manufacturer's website: Contact manufacturer to determine what may be different between the unit above for sale and the current generation machine from the manufacturer.

Manufacturer's website:  http://www.alfamacchine.com/mp.asp

Here is the owner's manual: http://esvc000945.wic054u.server-web.com/PDFs/minigraph4e3p_owners_manual.pdf

The Minigraf MP and its Memory Program technology is "State of the Art" allowing profile data for up to 4000 frames to be entered or downloaded from a PC. Once this information is stored, the operator simply "brings up" the next frame to be produced or simply scans with the optional barcode scanner. This machine will automatically adjust and production can restart immediately. Wedges can be driven or stacked in up to 10 positions per corner. This machine is very fast and easily drives in all types of wood, plastic and MDF. Other features include a pneumatic load/feed system to eliminate jams and clamp fixtures to fit the majority of profiles, including a double hydraulic hold down for wider/shaped frames.

Moulding Width - 10 mm to 100 mm
Moulding Height - 5 mm to 80 mm

Dimensions
Length - 770 mm
Width - 770 mm
Height - 1500 mm

Main features

• Designed for production
• 4000 frames can be entered or downloaded from a PC
• Scan with the optional barcode scanner
• Auto adjusts so that production can restart immediately
• Wedges can be positioned or stacked in up to 10 positions per corner
• Lightening quick and drives all types of wood, plastic and MDF

Here are a few links that provide more manufacturer's info:

http://www.bizea.lt/index.php?id=13&language=EN

http://jagannathframes.com/frm_jm3.asp

This item can be picked up in UT, or shipped for an additional fee by common carrier. Shipping is not the $6.50 default on the order page.

Mike-UT-8-15-10

Sold 8-30-10       Return Home
