***Reduced***Item # UFE-1229   $3,350

Full Image

CTD D45A Double Miter Saw

This machine is in Good Working Condition. This machine has been well maintained. It is has a 14" blade and is currently used to cut wood & polystyrene mouldings..

Below is information from Manufacturer's Website. Check with Tech Support for any differences between what is being sold and the newer generation machines.

From Manufacturer's Website:

CTD D45AX Fixed 45 Degree Frame Saw

The D45 is popular world wide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes two 45 degrees mitres at one time, saving time and materials. D45's are used by thousands in the decorative arts trade throughout world.

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

Blade Capacity: 10" OD (254mm) ,12'' OD, 14'' OD

Spindle & Pivot: Both mounted on pre-loaded and sealed ball bearings.

Arbor: 5/8 (16mm) with 2-1/4 (57mm) saw collars.

Iron Castings: Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.

Motors & Voltages: 1-1/2 H.P., 3450 RPM with Dual Magnetic Starter.

Table Height: 34-1/2 (88cm) from floor.

Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6 dust outlet. 1200 CFM required.

• Length of stroke adjustment: The D45AX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular moulding or extrusion. Saw heads reverse immediately, on release of the foot valve, thereby saving wasted time and motion.

• Production Rate: The D45AX is capable of cycling at one second intervals. However, actual production rates vary with the type and width of material to be cut.

• Size: Standard machine, without tables or gages; weight 550 lbs. 46'' wide x 22'' front to back x 51-1/2'' high.

• Actuation: Pneumatic foot valve with cover

• Air Pressure: 75 PSI with Air Filter/Regulator/Lubricator; includes Auto Drain.

• Air Consumption: 1.0 CF per 10 strokes at 75 PSI.

See page #119 for Current Information

This item can be picked up in California or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

Joseph-CA-2-4-11

Order This Item    Return Home

***Reduced***Item # UFE-1230   $3,350

Full Image

CTD D45A Double Miter Saw

This machine is in Good Working Condition. This machine has been well maintained. It is currently used to cut metal mouldings.

Below is information from Manufacturer's Website. Check with Tech Support for any differences between what is being sold and the newer generation machines.

From Manufacturer's Website:

CTD D45AX Fixed 45 Degree Frame Saw

The D45 is popular world wide because of its unique features, low cost and precision. Engineered for higher production, this double mitre saw makes two 45 degrees mitres at one time, saving time and materials. D45's are used by thousands in the decorative arts trade throughout world.

Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.

Blade Capacity: 10" OD (254mm) ,12'' OD, 14'' OD

Spindle & Pivot: Both mounted on pre-loaded and sealed ball bearings.

Arbor: 5/8 (16mm) with 2-1/4 (57mm) saw collars.

Iron Castings: Saw arm, pivot brackets and table are precision machined and ground with milled slots in table to guide pivot brackets and fences.

Motors & Voltages: 1-1/2 H.P., 3450 RPM with Dual Magnetic Starter.

Table Height: 34-1/2 (88cm) from floor.

Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6 dust outlet. 1200 CFM required.

• Length of stroke adjustment: The D45AX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular moulding or extrusion. Saw heads reverse immediately, on release of the foot valve, thereby saving wasted time and motion.

• Production Rate: The D45AX is capable of cycling at one second intervals. However, actual production rates vary with the type and width of material to be cut.

• Size: Standard machine, without tables or gages; weight 550 lbs. 46'' wide x 22'' front to back x 51-1/2'' high.

• Actuation: Pneumatic foot valve with cover

• Air Pressure: 75 PSI with Air Filter/Regulator/Lubricator; includes Auto Drain.

• Air Consumption: 1.0 CF per 10 strokes at 75 PSI.

See page #120 for Current Information

This item can be picked up in California or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

Joseph-CA-2-4-11

Order This Item    Return Home

 *** Reduced *** Item # UFE-1231   $ 300

Full Image

12" Miter Disc Sander

Miter "Correcto" Sander - Barton Model FR-00 1HP

This machine is in good working condition.

See page #120 for Current Information

This item can be picked up in the Wisconsin, or shipped for an additional fee by UPS. Shipping is not the $6.50 default on the order page.

Nicholas-WI-2-4-11 $375 / 3-4-11 $300

Sold-2-15-12-Nicholas   Return Home

See our New Framing Equipment catalog for information.

Item # UFE-1232   $ Call for Pricing

Full Image

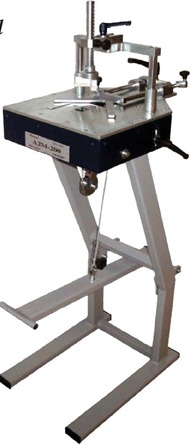

 ITW VN Mitre-Mite A2M 200 Manual

ITW Manual Under-pinner / V-Nailer

NEW from the Factory.

From the Manufacturer's Website:

The Mitre-Mite A2M200 Manual is our newest entry level frame assembly machine. It has a new lightweight design yet heavy duty mechanical components that have come to be know as the most robust V-Nailer in the industry !

ITW AMP's unique V-Nail driver assembly system eliminates frequent blade changing and allows for years of trouble-free operation.

The new design allows for moulding sizes up to 7" wide and offers operator features such as tilting base, front or rear set-up, and the new " positive placement " clamping feature

Machine Size: Width 15" / Length 24" / Height 46" / Weight 83 lbs.

Power Source: Manual, mechanical gear

Framing Capability: Frame Width 1/4" to 7" / Frame Height 1/4 to 3 7/8"

V-Nail Sizes: 3, 5, 7, 10, 12, 15 mm

Optional Accessories: Metal extension wings, custom fences for 6 / 8 sided frames

This item is shipped by freight company. Shipping is not the $6.50 default on the order page. Please call for a shipping quote.

ITW AMP Feb - 2011

Sold 1-25-12  Return Home

$11,750 + List Price

Item # UFE-1233   $ 4,995

Full Image

ITW AMP VN4+MP / Alphamachine Minigraf 4

ITW AMP VN4+MP / Alphamachine Minigraf 4  Programmable Electronic Production V-Nail Frame Assembly Machine

This unit is in Good Working Condition.

Manufactured:

Weight: 275 lbs.

This item can be picked up in Canada or shipped for an additional fee by a freight company. Shipping is not the $6.50 default on the order page.

Lorenzo-CA-2-10-11

Sold 12-2-11-Lorenzo     Return Home

(Retails new for $6,700)

Item # UFE-1234   $3,200

Full Image

Ledsome 12" Mitre Saw

Saw is in Good Condition.

Check with manufacturer for any difference between the machine being sold and what is stated in the manufacturer's website.

Following info is from manufacturer's website:

The Model #1000 12" Double Mitre Saw is a wood saw with a 4-1/4" cutting capacity -- a full 1" more than some other 12" saws. The Model #1000 gives you the same perfect 45 mitre as our other models but we have taken some of the extra cost off. The Model #1000 is equipped with one set of 90-tooth lazer blades - the finest mitre blade available - one production stop, a 60" stainless measuring scale (increments of 1/8"), one chipbreaker, ...The Model #1000 runs two 1-HP, 3450 RPM motors on single-phase 220 electricity and it is foot operated.  Optional equipment available includes a 120” scale.  Saw vac included.

Specifications & more info for this saw can be found on the manufacturers website at: www.ledsome.com/12saws.htm

This item can be picked up in Canada or shipped for an additional fee by a freight company. Shipping is not the $6.50 default on the order page.

Lorenzo-CA-2-10-11

Sold-2-16-16   Return Home
